+1 Images

CAT 323D3

0(0 Reviews)

CAT 323D3 is available in the India market with an ex-showroom price of ₹44.00 Lakh. CAT 323D3 comes with 151,62 kN.m.

₹44.00 Lakh^*

View Price Breakup

EMI starts @

₹82,203/Month^*

Ex-showroom price in

EMI starts @

₹82,203/Month^*

323D3
Price
Variants
Images
Specs
Reviews
Q&A
Videos
EMI
Brochure

CAT 323D3 Construction Equipments Specs & Features

151
Power
62 kN.m
Maximum Torque

CAT 323D3 Construction Equipments Overview

CAT 323D3 Construction Equipments Engine

CAT 323D3 is powered by 151 and 62 kN.m

CAT 323D3 Latest Price in India 2025

CAT 323D3 is available in India starting from ₹44.00 Lakh

CAT 323D3 Alternatives & Competitors

Main rival Construction Equipments of CAT 323D3 are CAT 424, ACE AX-124 NS, ACE AX-130, BOBCAT B900, BULL HD 100 and Volvo EC210D

Keep reading to explore more about CAT 323D3's updated specs, latest prices, horsepower, genuine user reviews, exclusive images, best offers near you, Construction Equipments dealers.

CAT 323D3 Variant	Price Range
Base	₹44.00 Lakh

Base
- 151
- 62 kN.m
₹44.00 Lakh ^*
View Price Breakup

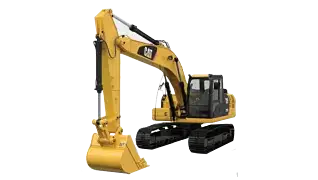

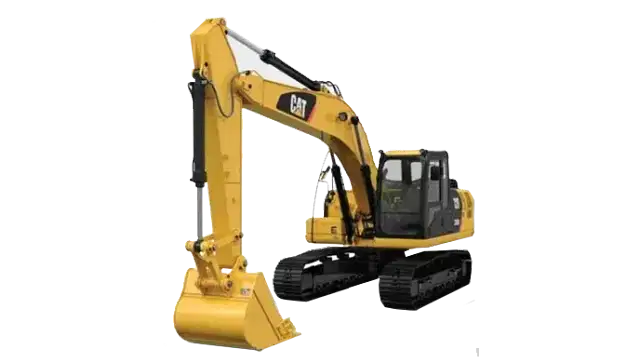

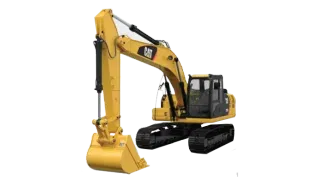

CAT 323D3 Images

CAT 323D3

CAT 323D3 Specifications

Engine
Hydraulic system
General
Dimensions
Swing Mechanism
Weights
Working Ranges & Forces

Engine

ModelCAT C7.1

Displacement7.01 L

Power151

Net Power Iso 9249143 Hp

Bore105 mm

Stroke135

Power Iso 14396152 HP

Hydraulic system

Main Maximum Flow400

Maximum Pressure Equipment350000

Maximum Pressure Travel350000

Maximum Pressure Swing25000

General

CategoryExcavator

Sub CategoryMedium

Dimensions

Boom5700

Shipping Height Top Of Cab3050

Shipping Length9460

Ground Clearance450

Track Gauge2380

Counterweight Clearance1020

Tail Swing Radius2750

Track Length4460

Stick2500

Handrail Height2915

Length To Center Of Rollers3650

Transport Width2980

Bucket1.05

Swing Mechanism

Speed11 r/min

Maximum Torque62 kN.m

Weights

Operating Weight22800

Fuel Tank Capacity410

Engine Oil18

Hydraulic Tank138

Hydraulic Including Tank260

Cooling28

Swing Drive6

Final Drive5

Working Ranges & Forces

Maximum Digging Depth6300

Boom5700

Bucket Capacity1.2

Maximum Reach At Ground Level9470

Maximum Cutting Height9250

Maximum Vertical Wall Digging Depth5290

Maximum Loading Height6290

Bucket Digging Force Iso140 kN

Stick Digging Force Iso118 kN

Stick2500

Minimum Loading Height2590

Maximum Depth Cut For 2440 Mm 8ft Level Bottom5960
