CASE 770 EX

4.4(0 Reviews)

CASE 770 EX is available in the India market with an ex-showroom price of ₹25.00 Lakh. CASE 770 EX comes with 340 NM,0.26.

₹25.00 Lakh^*

View Price Breakup

EMI starts @

₹46,706/Month^*

Ex-showroom price in

EMI starts @

₹46,706/Month^*

770 EX
Price
Variants
Images
Specs
Reviews
Q&A
Videos
EMI
Brochure

CASE 770 EX Construction Equipments Specs & Features

340 NM
Maximum Torque
0.26
Bucket Capacity

CASE 770 EX Construction Equipments Overview

CASE 770 EX Construction Equipments Engine

CASE 770 EX is powered by 340 NM and 0.26

CASE 770 EX Latest Price in India 2025

CASE 770 EX is available in India starting from ₹25.00 Lakh

CASE 770 EX Alternatives & Competitors

Main rival Construction Equipments of CASE 770 EX are JCB 3DX, CASE 770NXe, JCB 3DX Xtra, MAHINDRA Earthmaster SX IV, Tata Hitachi Shinrai and Tata Hitachi Shinrai Pro

Keep reading to explore more about CASE 770 EX's updated specs, latest prices, horsepower, genuine user reviews, exclusive images, best offers near you, Construction Equipments dealers.

CASE 770 EX Variant	Price Range
Base	₹25.00 Lakh

Base
- 340 NM
- 0.26
₹25.00 Lakh ^*
View Price Breakup

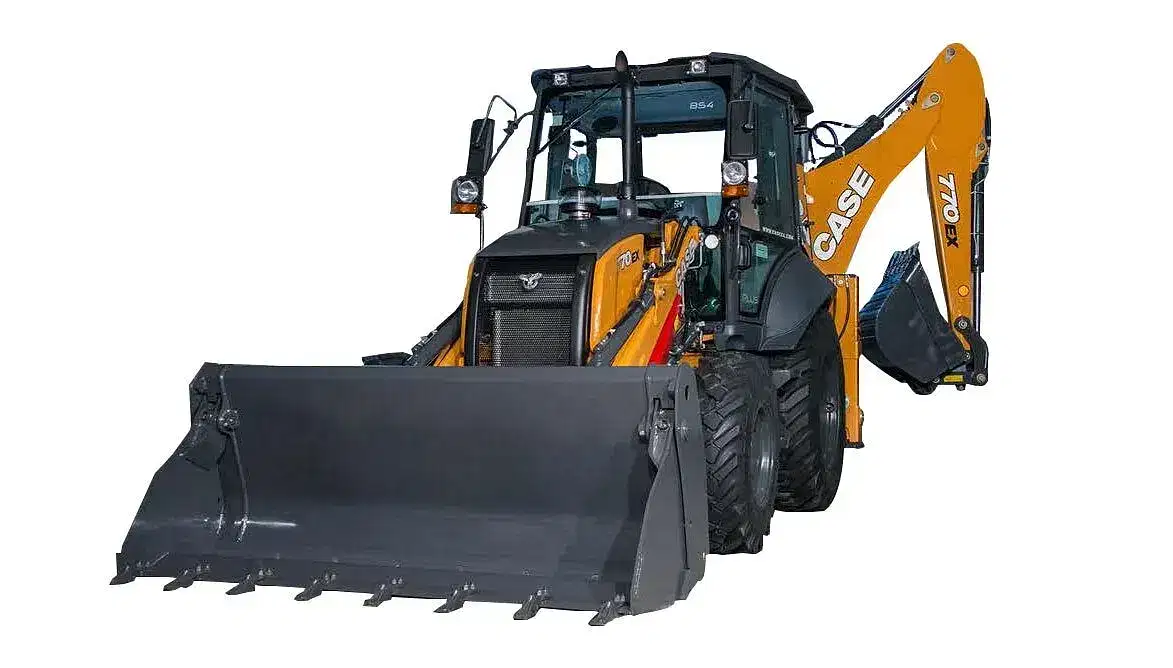

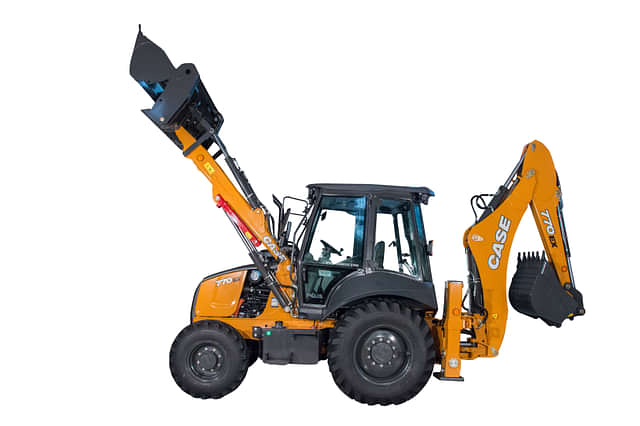

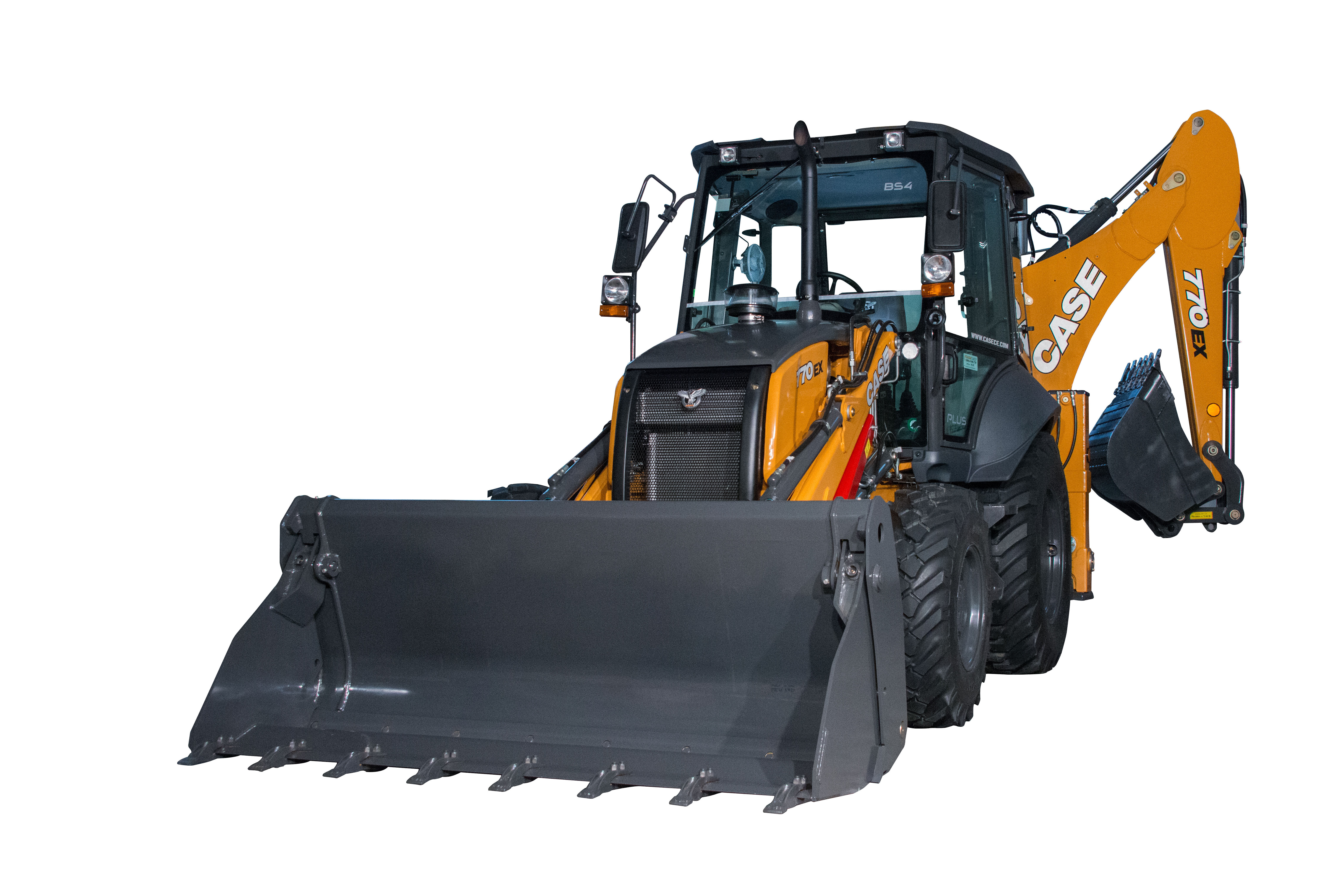

CASE 770 EX Images

CASE 770 EX
CASE 770 EX

CASE 770 EX Specifications

Engine
Loader General Dimension
Backhoe Loader Dimension
Overall Dimension & Weight
Hydraulic system
Service Capacities
Axle
Steering
Brakes
Tyre
Electrical System
Power Train
General

Engine

ModelH4C4E7422*W

CompliantTier 4B/ CEV BS-IV

Displacement3840

Air Intake TypeTurbocharged Intercooled

Gross Power74 hp

Maximum Torque340 NM

Loader General Dimension

Dump Height2730 MM

Load Over Height3300 MM

Hinge Pin Height3600 MM

Hinge Pin Forward Reach240 MM

Reach At Ground1980 MM

Max Reach At Full Height Bucket Dumped1190

Below Ground Level Dig Depth110 MM

Rollback At Ground33 Deg.

Dump Angle45 Deg

Bucket Capacity Std1.1

Bucket Breakout Force5805/ 56.

Loader Arm Breakout Force46.6 kN

Max Pay Load1925 kg

Maximum Lifting Capacity3515

Backhoe Loader Dimension

Dipper Configuration4300 MM

Max Dig Depth4400 mm

Reach Ground Level To Swing Center5.63

Reach Ground Level To Rear Wheel Center6950

Reach At Full Height To Slew Center2150

Max Working Height5500

Max Load Over Height3800

Bucket Capacity0.26

Bucket Capacity Backhoe0.6

Bucket Rotation204 Deg

Bucket Breakout Force5206/ 51.0 ((kgf/kN)

Dipper Tear Out Force3031/ 29.72 (kgf/kN)

Max Lift Capacity1330

Safe Working Load1150

Overall Dimension & Weight

Max Operating Weight7780

Transport Length5880

Width Over Stabilizer2270 MM

Width Over Bucket2270 MM

Track Width Rear1700 MM

Track Width Front2WD – 1880 MM / 4WD - 1900 MM

Wheelbase2180 MM

Minimum Ground Clearance380 MM

Height To Top Of Cabin2800

Overall Transport Height3850

Hydraulic system

Pump TypeTwin gear Pump

Pump Flow126 lpm

TypeOpen Center Load Sensin

Relief Pressure195 Bar

Service Capacities

Engine Oil9.1

Rear Axle17.1 Ltr.

Hydraulic Oil Replacement80 Ltr.

Fuel Tank129 L

Coolant20 Ltr.

Hydraulic Oil107

Transmission Oil Capacity18 Ltr (2WD), 20 Ltr (4WD)

Axle

RearCARRARO 28.32M

FrontCNH PS1300 (2WD) CARARRO/NH 26.17M (4WD)

Front Oscillation±21 (2WD) ±16 (4WD)

Steering

TypePower Steering

Unit Displacement125 CC

Turning Circle Diameter Outside Bucket9.2

Turning Circle Diameter Outside Bucket Not Braked11.1

Pressure140 Bar

Brakes

ServiceHydraulic foot operated, 2 disc per side

ParkingMechanically actuated caliper type brake pack on rear axle input shaft

Tyre

Hd Rear Optional14x25 -20PR/12PR

Standard Front9x16 -16PR

Standard Rear16.9x28 -12PR

Electrical System

Battery12 V, 110 Ah

Power Train

Transmission Make And ModelCARRARO 2WD/4WD TLB1

Powertrain Type4F-4R Power Shuttle Synchromesh Transmission

General

CategoryBackhoe Loader

ForwardEX : 5.8/9.3/19.5/34.1

ReverseEX : 6.8/10.8/22.1/NR
