Comparison For JCB 2DX-vs-JCB 3DX Plus

Confused between JCB 2DXandJCB 3DX Plus ? Wondering whether you should spend that hard earned money on JCB 2DXandJCB 3DX Plus? Don't Worry! We are here to help you choose between these two models. Talking about JCB 2DX, it has been priced at Rs ₹18.00 Lakh. On the other hand, JCB 3DX Plus will cost you more than JCB 2DX.JCB 3DX Plus comes with a price tag of Rs ₹30.00 Lakh.

Check the details

Check the detailed comparison for the models below on the basis of features, comfort, power, transmission, suspension and more.

Key HighlightsJCB 2DXJCB 3DX Plus
EX-Showroom Price₹18.00 Lakh₹30.00 Lakh
2DX

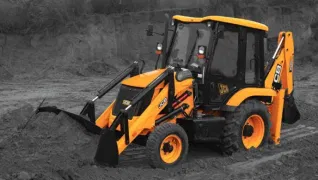

JCB 2DX

Base

₹18.00 Lakh

3DX Plus

JCB 3DX Plus

Base

₹30.00 Lakh

  • Model
    KOEL 4R810 JCB 444
    Compliant
    BSIII diesel engine CEV Stage lV
    Gross Power
    36.4 kW (49 hp) 55kW (74hp) @ 2200 rpm

  • Dump Height
    2300 MM 2740 MM
    Load Over Height
    2740 3320 MM
    Hinge Pin Height
    3000 3540
    Hinge Pin Forward Reach
    370 250
    Reach At Ground
    1300 MM 1420
    Max Reach At Full Height Bucket Dumped
    1120 1150
    Below Ground Level Dig Depth
    790 70
    Rollback At Ground
    46° 45 deg
    Dump Angle
    44 Deg. 38
    Bucket Capacity Std
    0.6 0.26
    Loader Arm Breakout Force
    1834 kgf 5635 kgf
    Max Pay Load
    800 1800
    Maximum Lifting Capacity
    1620 NA

  • Max Dig Depth
    3020 MM 4770 MM
    Reach Ground Level To Rear Wheel Center
    5140 6720
    Reach At Full Height To Slew Center
    3930 2740
    Max Working Height
    3880 5970
    Max Load Over Height
    2830 4180
    Bucket Capacity Backhoe
    NA 0.2
    Bucket Rotation
    NA 185 deg
    Bucket Breakout Force
    NA 5959 kgf
    Dipper Tear Out Force
    NA 3257 kgf
    Max Lift Capacity
    1490 Kg 1490 Kg

  • Max Operating Weight
    5220 7510
    Transport Length
    5500 5900
    Width Over Bucket
    1912 MM 2350 MM
    Track Width Rear
    1420 Mm 1730 MM
    Track Width Front
    1620 Mm 1860 MM
    Minimum Ground Clearance
    330 MM 510
    Height To Top Of Cabin
    2070 2870 MM

  • Pump Type
    Gear, double pump NA
    Pump Flow
    70.4 lpm @ 2200 rpm 114 lpm

  • Rear Axle
    10 Ltr 20 Ltr
    Hydraulic Oil
    60 92
    Transmission Oil Capacity
    16 Ltr 17.5 Ltr

  • Service
    Hydraulically actuated, dual line, self-adjusting (compensated), oil immersed, multi-disc type on the rear axle, well protected from dirt, water, etc. Operated through independent pedals linked togeth JCB ‘Q’ brakes, hydraulically actuated, dual line, self adjusting (compensated), oil immersed, multi-disc type on the rear axle, well protected from dirt, water etc. requiring no maintenance. Operated
    Parking
    NA Hand operated, disc brakes on rear axle input disc

  • Standard Front
    7.5 x 16 -16 PR 9 x 16 - 16 PR
    Standard Rear
    12 x 24 - 20 PR, 14.9 x 24 - 12 PR 16.9 x 28 - 12 PR

  • Transmission Make And Model
    The JCB. SS 700 svncbroshuttle transmission. It consistsof a 4-speed, fully Synchromesh, smooth shift gearbox with integral torque convertor and electrically operated reversing shuttle NA

  • Category
    Backhoe Loader Backhoe Loader
    Power
    49 HP 74 HP
    Forward
    NA 6.5/10.5/19.8/36
    Reverse
    NA 6.5/10.5

  • Bucket Capacity
    0.60 cu.m 1 cu.m

  • Maximum Torque
    203 Nm 400 Nm
