+1 Images

CAT 320D3 GC

0(0 Reviews)

CAT 320D3 GC is available in the India market with an ex-showroom price of ₹86.25 Lakh. CAT 320D3 GC comes with 113,62 kN.m.

₹86.25 Lakh^*

View Price Breakup

EMI starts @

₹1,61,137/Month^*

Ex-showroom price in

EMI starts @

₹1,61,137/Month^*

320D3 GC
Price
Variants
Images
Specs
Reviews
Q&A
Videos
EMI
Brochure

CAT 320D3 GC Construction Equipments Specs & Features

113
Power
62 kN.m
Maximum Torque

CAT 320D3 GC Construction Equipments Overview

CAT 320D3 GC Construction Equipments Engine

CAT 320D3 GC is powered by 113 and 62 kN.m

CAT 320D3 GC Latest Price in India 2025

CAT 320D3 GC is available in India starting from ₹86.25 Lakh

CAT 320D3 GC Alternatives & Competitors

Main rival Construction Equipments of CAT 320D3 GC are JCB 2DX, JCB 437-4, BOBCAT E37 ULTRA HD, JCB 3DXL PLUS, ACE Phantom 2WD and JCB NXT 215LC

Keep reading to explore more about CAT 320D3 GC's updated specs, latest prices, horsepower, genuine user reviews, exclusive images, best offers near you, Construction Equipments dealers.

CAT 320D3 GC Variant	Price Range
Base	₹86.25 Lakh

Base
- 113
- 62 kN.m
₹86.25 Lakh ^*
View Price Breakup

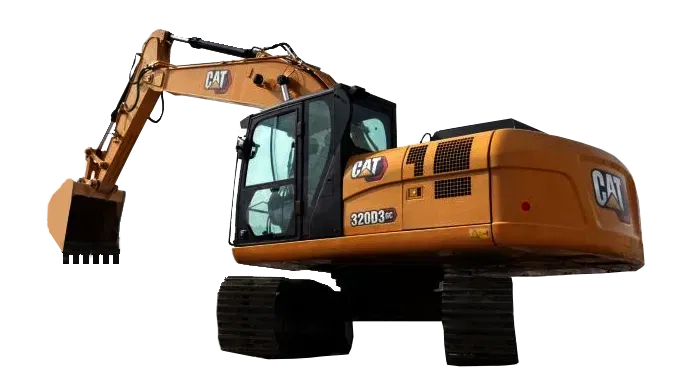

CAT 320D3 GC Images

CAT 320D3 GC

CAT 320D3 GC Specifications

Engine
Hydraulic system
General
Dimensions
Swing Mechanism
Weights
Working Ranges & Forces

Engine

ModelALUW06DTI

Displacement5.76 Ltr

Power113

Bore104

Stroke113

Power Iso 14396135 HP

Hydraulic system

Main Maximum Flow400

Maximum Pressure Equipment35000

Maximum Pressure Travel35000

Maximum Pressure Swing25000

General

CategoryExcavator

Sub CategoryMedium

Dimensions

Shipping Height Top Of Cab3100

Shipping Length9520

Ground Clearance450

Track Gauge2200

Counterweight Clearance1020

Tail Swing Radius2750

Track Length4080

Stick2250

Handrail Height2915

Length To Center Of Rollers3270

Transport Width2800

Swing Mechanism

Speed10 r/min

Maximum Torque62 kN.m

Weights

Operating Weight19800

Fuel Tank Capacity350

Engine Oil18

Hydraulic Tank110

Hydraulic Including Tank230

Cooling19

Swing Drive6

Final Drive5

Working Ranges & Forces

Maximum Digging Depth6005

Boom5700

Bucket Capacity0.92

Maximum Reach At Ground Level9140

Maximum Cutting Height9110

Maximum Vertical Wall Digging Depth5350

Maximum Loading Height6250

Bucket Digging Force Iso134 kN

Stick Digging Force Iso112 kN

Stick2250

Minimum Loading Height2920

Maximum Depth Cut For 2440 Mm 8ft Level Bottom5640
