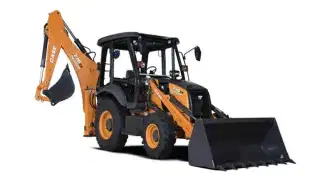

CASE 770 EX Magnum

0(0 Reviews)

CASE 770 EX Magnum is available in the India market with an ex-showroom price of . CASE 770 EX Magnum comes with 402 NM,0.3.

Price coming soon^*

View Price Breakup

EMI starts @

*****/month*

Ex-showroom price in

EMI starts @

*****/month*

770 EX Magnum
Price
Variants
Images
Specs
Reviews
Q&A
Videos
EMI
Brochure

CASE 770 EX Magnum Construction Equipments Specs & Features

402 NM
Maximum Torque
0.3
Bucket Capacity

CASE 770 EX Magnum Construction Equipments Overview

CASE 770 EX Magnum Construction Equipments Engine

CASE 770 EX Magnum is powered by 402 NM and 0.3

CASE 770 EX Magnum Latest Price in India 2025

CASE 770 EX Magnum is available in India starting from 0

CASE 770 EX Magnum Alternatives & Competitors

Main rival Construction Equipments of CASE 770 EX Magnum are JCB 3DX, CAT 424, ACE AX-124 4WD, ACE AX-124 NS, BOBCAT B900 and JCB 3DX Xtra

Keep reading to explore more about CASE 770 EX Magnum's updated specs, latest prices, horsepower, genuine user reviews, exclusive images, best offers near you, Construction Equipments dealers.

CASE 770 EX Magnum Variant	Price Range
Base

Base
- 402 NM
- 0.3
Price Coming Soon ^*
View Price Breakup

CASE 770 EX Magnum Images

CASE 770 EX Magnum
CASE 770 EX Magnum

CASE 770 EX Magnum Specifications

Engine
Loader General Dimension
Backhoe Loader Dimension
Overall Dimension & Weight
Hydraulic system
Service Capacities
Axle
Steering
Brakes
Tyre
Electrical System
Power Train
General

Engine

ModelFPT S8000

CompliantBS-III

Displacement3900

Air Intake TypeTurbocharged

Gross Power86 hp

Maximum Torque402 NM

Loader General Dimension

Dump Height2732

Load Over Height3275

Hinge Pin Height3580

Reach At Ground1486

Max Reach At Full Height Bucket Dumped2375

Below Ground Level Dig Depth106

Dump Angle45 Deg

Bucket Capacity Std1.1

Max Pay Load1760

Maximum Lifting Capacity3700

Backhoe Loader Dimension

Max Dig Depth4547

Reach Ground Level To Swing Center5753

Max Working Height5593

Max Load Over Height3774

Bucket Capacity0.3

Bucket Capacity Backhoe0.3

Bucket Rotation204 Degree

Bucket Breakout Force4535/5630 Kgf

Dipper Tear Out Force3250/4300 Kgf

Max Lift Capacity1470 Kg

Safe Working Load1100 kg

Overall Dimension & Weight

Max Operating Weight7711

Transport Length2300

Width Over Bucket2300 MM

Wheelbase2230

Minimum Ground Clearance400 MM

Overall Transport Height3840

Hydraulic system

Pump TypeGear pump

Pump Flow123 lpm

Service Capacities

Engine Oil9.1

Rear Axle17 Ltr.

Fuel Tank129 L

Coolant20 Ltr.

Hydraulic Oil110

Transmission Oil Capacity22 Ltr.

Axle

RearRigid axle with CARRARO 28.32M (2WD/4WD)

FrontCNH PS1300 (2WD), Carraro 26.17 (4WD)

Front Oscillation21 Degree (2WD), 16 Degree (4WD)

Steering

TypePower Steering

Unit Displacement125 CC

Pressure140 Bar

Brakes

ServiceWet multi-discs

ParkingManual, with lever

Tyre

Hd Rear Optional14x25 - 20 PR

Standard Front9.0x16 - 16 PR

Standard Rear16.9x28 - 12 PR

Electrical System

Battery12 V, 130 Ah

Power Train

Transmission Make And ModelCARRARO 4WD TLB1

Powertrain Type4 forward and 4 reverse travel speeds with power Shuttle

General

CategoryBackhoe Loader

Forward6.2/10/20.7/39.2

Reverse7.4/12/Not Recommended
