Manitou MBL 745
  • +2 Images

Manitou MBL 745

0(0 Reviews)

Manitou MBL 745 is available in the India market with an ex-showroom price of . Manitou MBL 745 comes with 300 NM,0.27.

Price coming soon*

View Price Breakup

EMI starts @

*****/month*

Ex-showroom price in

Manitou MBL 745

EMI starts @

*****/month*

  • MBL 745
  • Price
  • Variants
  • Images
  • Specs
  • Reviews
  • Q&A
  • Videos
  • EMI
  • Brochure

Manitou MBL 745 Construction Equipments Specs & Features

  • 300 NM
    Maximum Torque
  • 0.27
    Bucket Capacity

Manitou MBL 745 Construction Equipments Overview

Manitou MBL 745 Construction Equipments Engine

Manitou MBL 745 is powered by 300 NM and 0.27

Manitou MBL 745 Latest Price in India 2025

Manitou MBL 745 is available in India starting from 0

Manitou MBL 745 Alternatives & Competitors

Main rival Construction Equipments of Manitou MBL 745 are JCB 4DX, CAT 424, ACE AX-124 4WD, ACE AX-124 NS, BULL CH76 Challenger and BULL HD 100

Keep reading to explore more about Manitou MBL 745's updated specs, latest prices, horsepower, genuine user reviews, exclusive images, best offers near you, Construction Equipments dealers.

Manitou MBL 745 Variant Price Range
Base

Read More

Manitou MBL 745 Price List Variants

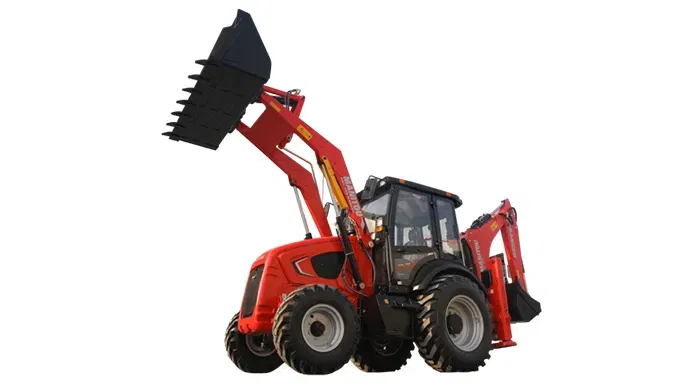

Manitou MBL 745 Images

  • Manitou MBL 745

    Manitou MBL 745

  • Manitou MBL 745

    Manitou MBL 745

Manitou MBL 745 Specifications

  • Engine
  • Loader General Dimension
  • Backhoe Loader Dimension
  • Overall Dimension & Weight
  • Hydraulic system
  • Service Capacities
  • Steering
  • Brakes
  • Tyre
  • Electrical System
  • General
Engine
Model4R1190NA1 Naturally Aspirated Water Cooled
CompliantBS IV CEV
Displacement4.76
Gross Power54.80 kW @ 2200 rpm
Maximum Torque300 NM
Loader General Dimension
Dump Height2780 MM
Load Over Height3310 MM
Hinge Pin Height3570
Max Reach At Full Height1153
Max Reach At Full Height Bucket Dumped2780
Below Ground Level Dig Depth156 mm
Rollback At Ground45 deg
Dump Angle51
Bucket Capacity Std1 Cum
Bucket Breakout Force5685 kgf
Loader Arm Breakout Force4691 kgf
Maximum Lifting Capacity3467
Backhoe Loader Dimension
Max Dig Depth4415
Bucket Capacity0.27
Bucket Capacity Backhoe0.2
Bucket Rotation197
Dipper Tear Out Force3163 kgf
Max Lift Capacity1460 Kg
Overall Dimension & Weight
Max Operating Weight7300
Transport Length7380
Width Over Bucket2330 MM
Minimum Ground Clearance280 mm
Height To Top Of Cabin2830 MM
Hydraulic system
Pump Flow119 l/min
Relief Pressure225 bar
Service Capacities
Engine Oil11 L
Rear Axle17.10 Ltr
Fuel Tank120 Litres
Hydraulic Oil90
Transmission Oil Capacity17.50 Ltr
Steering
TypePower Steering
Brakes
ServiceWet disc brakes
Tyre
Standard Front12.5 x 18 - 12 PR / 16.9 x 28-12PR
Standard Rear9 x 16 - 16 PR / 14 x 25 - 20 PR
Electrical System
Battery12 V / 142 Ah
General
CategoryBackhoe Loader
Forward5.40 km/h / 8.60 km/h
Reverse19.90 km/h / 40 km/h
