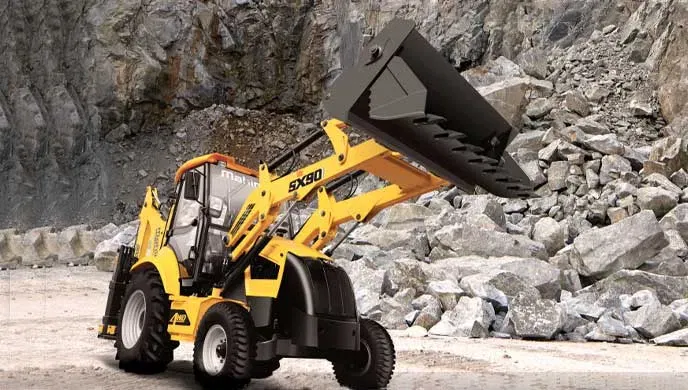

MAHINDRA Earthmaster SX90 4WD

0(0 Reviews)

MAHINDRA Earthmaster SX90 4WD is available in the India market with an ex-showroom price of ₹31.00 Lakh. MAHINDRA Earthmaster SX90 4WD comes with 345 NM,0.3.

₹31.00 Lakh^*

View Price Breakup

EMI starts @

₹57,916/Month^*

Ex-showroom price in

EMI starts @

₹57,916/Month^*

Earthmaster SX90 4WD
Price
Variants
Images
Specs
Reviews
Q&A
Videos
EMI
Brochure

MAHINDRA Earthmaster SX90 4WD Construction Equipments Specs & Features

345 NM
Maximum Torque
0.3
Bucket Capacity

MAHINDRA Earthmaster SX90 4WD Construction Equipments Overview

MAHINDRA Earthmaster SX90 4WD Construction Equipments Engine

MAHINDRA Earthmaster SX90 4WD is powered by 345 NM and 0.3

MAHINDRA Earthmaster SX90 4WD Latest Price in India 2025

MAHINDRA Earthmaster SX90 4WD is available in India starting from ₹31.00 Lakh

MAHINDRA Earthmaster SX90 4WD Alternatives & Competitors

Main rival Construction Equipments of MAHINDRA Earthmaster SX90 4WD are JCB 3DX, JCB 4DX, CAT 424, ACE AX-124 4WD, BOBCAT B900 and BULL HD 100

Keep reading to explore more about MAHINDRA Earthmaster SX90 4WD's updated specs, latest prices, horsepower, genuine user reviews, exclusive images, best offers near you, Construction Equipments dealers.

MAHINDRA Earthmaster SX90 4WD Variant	Price Range
Base	₹31.00 Lakh

Base
- 345 NM
- 0.3
₹31.00 Lakh ^*
View Price Breakup

MAHINDRA Earthmaster SX90 4WD Images

MAHINDRA Earthmaster SX90 4WD
MAHINDRA Earthmaster SX90 4WD

MAHINDRA Earthmaster SX90 4WD Specifications

Engine
Loader General Dimension
Backhoe Loader Dimension
Overall Dimension & Weight
Hydraulic system
Service Capacities
Axle
Steering
Brakes
Tyre
Power Train
General

Engine

Model4915-IA-CE V

CompliantBS III

Displacement3532 CC

Gross Power91 hp

Maximum Torque345 NM

Loader General Dimension

Dump Height2723

Load Over Height3277

Hinge Pin Height3477 MM

Hinge Pin Forward Reach204

Reach At Ground1350 MM

Max Reach At Full Height Bucket Dumped4885

Below Ground Level Dig Depth107 MM

Rollback At Ground44 Deg

Dump Angle44 Deg.

Bucket Capacity Std1.1

Bucket Breakout Force6243 kg

Loader Arm Breakout Force5594 kg

Max Pay Load1800

Maximum Lifting Capacity1800

Backhoe Loader Dimension

Max Dig Depth4959 mm

Reach Ground Level To Swing Center5794 mm

Reach Ground Level To Rear Wheel Center7101

Reach At Full Height To Slew Center2676 mm

Max Working Height6043 mm

Max Load Over Height4302

Bucket Capacity0.3

Bucket Capacity Backhoe0.3

Dipper Tear Out Force3182 kg

Max Lift Capacity3428 Kg

Overall Dimension & Weight

Max Operating Weight7742

Transport Length5856

Width Over Bucket2404 mm

Track Width Rear1720 MM

Track Width Front1920 MM

Wheelbase2175 mm

Height To Top Of Cabin2950

Hydraulic system

Pump TypeFixed Displacement, Gear Pump

Pump Flow117 Ltr

TypeOpen Centre

Service Capacities

Engine Oil13.7

Rear Axle17.1 Ltr

Fuel Tank120 Litres

Coolant17 Ltr

Hydraulic Oil100

Transmission Oil Capacity22 Ltr

Axle

RearRigidly mounted drive axle, with outbound planetary final drives, driven by short drive shaft.

FrontCentrally pivoted, driven unbalanced type axle, with total oscillation of 16°, with remote greasing facility for the main pin.

Steering

TypeFront wheel hydrostatic power steering with priority function and pressure relief setting of 145 bar.

Brakes

ServiceHydraulically actuated, self adjusting, maintenance free, oil immersed multi-disc, on the rear axle, operated by independent foot pedals, joined together for normal operation.

ParkingHand operated, inbuilt in the rear axle, low maintenance.

Tyre

Standard Front12.5 / 80 X 18-12PR (IT/HD]

Standard Rear16.9 X 28 - 12PR (IT], 14 X 25 - 12PR/20PR [HD]

Power Train

Transmission Make And ModelFour Speed [4 Forward, 4 Reverse]

General

CategoryBackhoe Loader
