ACE Phantom 4WD
  • +2 Images

ACE Phantom 4WD

0(0 Reviews)

ACE Phantom 4WD is available in the India market with an ex-showroom price of . ACE Phantom 4WD comes with 377 NM,0.24.

Price coming soon*

View Price Breakup

EMI starts @

*****/month*

Ex-showroom price in

ACE Phantom 4WD

EMI starts @

*****/month*

  • Phantom 4WD
  • Price
  • Variants
  • Images
  • Specs
  • Reviews
  • Q&A
  • Videos
  • EMI
  • Brochure

ACE Phantom 4WD Construction Equipments Specs & Features

  • 377 NM
    Maximum Torque
  • 0.24
    Bucket Capacity

ACE Phantom 4WD Construction Equipments Overview

ACE Phantom 4WD Construction Equipments Engine

ACE Phantom 4WD is powered by 377 NM and 0.24

ACE Phantom 4WD Latest Price in India 2025

ACE Phantom 4WD is available in India starting from 0

ACE Phantom 4WD Alternatives & Competitors

Main rival Construction Equipments of ACE Phantom 4WD are JCB 3DX, ACE AX-124 4WD, BULL HD 76, JCB 3DX Plus, JCB 2DX and CAT 12K

Keep reading to explore more about ACE Phantom 4WD's updated specs, latest prices, horsepower, genuine user reviews, exclusive images, best offers near you, Construction Equipments dealers.

ACE Phantom 4WD Variant Price Range
Base

Read More

ACE Phantom 4WD Price List Variants

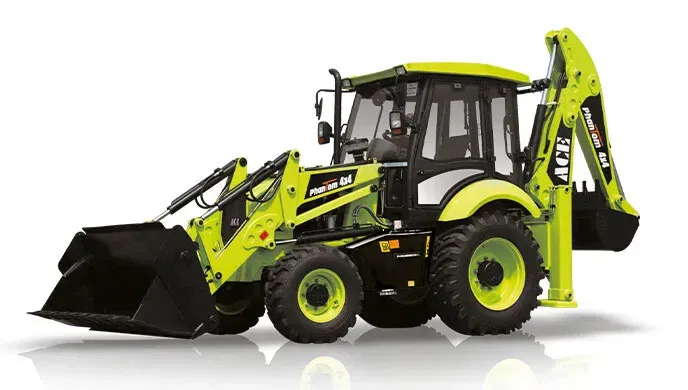

ACE Phantom 4WD Images

  • ACE Phantom 4WD

    ACE Phantom 4WD

  • ACE Phantom 4WD

    ACE Phantom 4WD

ACE Phantom 4WD Specifications

  • Engine
  • Loader General Dimension
  • Backhoe Loader Dimension
  • Overall Dimension & Weight
  • Hydraulic system
  • Service Capacities
  • Axle
  • Steering
  • Brakes
  • Tyre
  • Electrical System
  • General
Engine
ModelKILOSKAR 4R1040TA
CompliantBS-III
Air Intake TypeTurbocharged Water Cooled
Gross Power96 hp
Maximum Torque377 NM
Loader General Dimension
Dump Height2760 MM
Load Over Height3340 MM
Hinge Pin Height3630
Reach At Ground1770 MM
Max Reach At Full Height Bucket Dumped1220
Below Ground Level Dig Depth80 MM
Rollback At Ground44 Deg
Dump Angle45 Deg
Bucket Capacity Std1.1
Loader Arm Breakout Force4950 Kgf
Max Pay Load1900 kg
Backhoe Loader Dimension
Max Dig Depth4250 MM
Bucket Capacity0.24
Bucket Rotation175 Degree
Max Lift Capacity1900
Overall Dimension & Weight
Max Operating Weight8190
Width Over Bucket2500 MM
Track Width Rear1550 MM
Track Width Front1840 MM
Wheelbase2180 MM
Minimum Ground Clearance350 MM
Height To Top Of Cabin2900 MM
Hydraulic system
Pump Flow118 lpm
Service Capacities
Engine Oil11.5
Rear Axle3 Ltr.
Fuel Tank150 ltrs
Coolantwater cooled
Hydraulic Oil90
Axle
RearRigid axle with CARRARO planetary drive
FrontDrive & Steer Axle, centrally pivoted
Steering
TypeHydrostatic steering for reliability and better control
Brakes
ServiceHydraulically Actuated Disc Brakes
ParkingMechanically actuated disc brakes for parking
Tyre
Standard Front12.5/80-18-12 PR
Standard Rear16.90-28-12 PR
Electrical System
Battery12 V
General
CategoryBackhoe Loader
