ACE AX 124 Eco-master
  • +2 Images

ACE AX 124 Eco-master

0(0 Reviews)

ACE AX 124 Eco-master is available in the India market with an ex-showroom price of . ACE AX 124 Eco-master comes with 245 NM,0.24.

Price coming soon*

View Price Breakup

EMI starts @

*****/month*

Ex-showroom price in

ACE AX 124 Eco-master

EMI starts @

*****/month*

  • AX 124 Eco-master
  • Price
  • Variants
  • Images
  • Specs
  • Reviews
  • Q&A
  • Videos
  • EMI
  • Brochure

ACE AX 124 Eco-master Construction Equipments Features

  • 245 NM
    Maximum Torque
  • 0.24
    Bucket Capacity

ACE AX 124 Eco-master Construction Equipments Overview

ACE AX 124 Eco-master Construction Equipments Engine

ACE AX 124 Eco-master is powered by 245 NM and 0.24

ACE AX 124 Eco-master Latest Price in India 2025

ACE AX 124 Eco-master is available in India starting from 0

ACE AX 124 Eco-master Alternatives & Competitors

Main rival Construction Equipments of ACE AX 124 Eco-master are JCB 4DX, ACE AX-124, ACE AX-124 4WD, ACE AX-124 NS, BULL HD 100 and CAT 424

Keep reading to explore more about ACE AX 124 Eco-master's updated specs, latest prices, horsepower, genuine user reviews, exclusive images, best offers near you, Construction Equipments dealers.

ACE AX 124 Eco-master Variant Price Range
Base

Read More

ACE AX 124 Eco-master Price List Variants

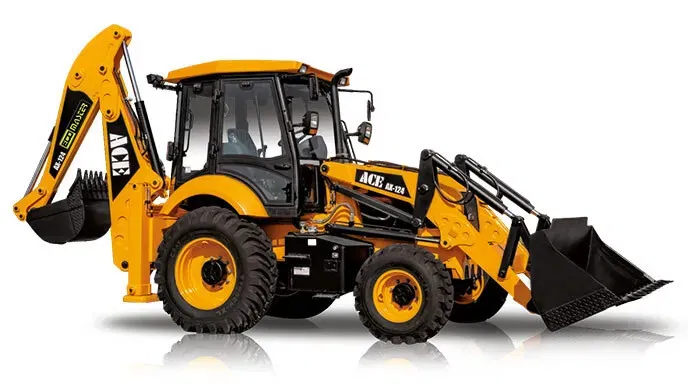

ACE AX 124 Eco-master Images

  • ACE AX 124 Eco-master

    ACE AX 124 Eco-master

  • ACE AX 124 Eco-master

    ACE AX 124 Eco-master

ACE AX 124 Eco-master Specifications

  • Engine
  • Loader General Dimension
  • Backhoe Loader Dimension
  • Overall Dimension & Weight
  • Hydraulic system
  • Service Capacities
  • Axle
  • Steering
  • Brakes
  • Tyre
  • Electrical System
  • General
Engine
ModelACE-A50 Ht
CompliantBS-III
Air Intake TypeWater Cooled
Gross Power49.5 hp
Maximum Torque245 NM
Loader General Dimension
Dump Height2760 MM
Load Over Height3340 MM
Hinge Pin Height3630
Reach At Ground1770 MM
Max Reach At Full Height Bucket Dumped1220
Below Ground Level Dig Depth80 MM
Rollback At Ground44 Deg
Dump Angle45 Deg
Bucket Capacity Std1.1
Loader Arm Breakout Force4950 Kgf
Max Pay Load1800
Backhoe Loader Dimension
Max Dig Depth4250 MM
Reach Ground Level To Rear Wheel Center6730 MM
Reach At Full Height To Slew Center2780 MM
Max Working Height5470 MM
Max Load Over Height3790 MM
Bucket Capacity0.24
Bucket Rotation175 Degree
Dipper Tear Out Force3010 Kgf
Max Lift Capacity1800 Kg
Overall Dimension & Weight
Max Operating Weight7910
Width Over Bucket2500 MM
Track Width Rear1550 MM
Track Width Front1840 MM
Wheelbase2180 MM
Minimum Ground Clearance350 MM
Height To Top Of Cabin2900 MM
Hydraulic system
Pump Flow99 lpm
Service Capacities
Engine Oil12L
Rear Axle3 Ltr.
Fuel Tank150 ltrs
Hydraulic Oil80
Axle
RearRigid axle with CARRARO planetary drive
FrontDrive & Steer Axle, centrally pivoted
Steering
TypeHydrostatic steering for reliability and better control
Brakes
ServiceHydraulically Actuated Disc Brakes
ParkingMechanically actuated disc brakes for parking
Tyre
Standard Front9.00 x 16 – 16 PR
Standard Rear16.90 - 28 - 12 PR
Electrical System
Battery12 V
General
CategoryBackhoe Loader
