ACE AF 350D Construction Equipments Specs & Features

6
No Of Cylinders
Diesel
Fuel Type

ACE AF 350D Construction Equipments Overview

ACE AF 350D Construction Equipments Engine

ACE AF 350D is powered by 6 and Diesel

ACE AF 350D Latest Price in India 2025

ACE AF 350D is available in India starting from 0

ACE AF 350D Alternatives & Competitors

Main rival Construction Equipments of ACE AF 350D are ACE AX-130, CAT 424, ACE AX-124, ACE AX-124 4WD, ACE AX-124 NS and BOBCAT B900

Keep reading to explore more about ACE AF 350D's updated specs, latest prices, horsepower, genuine user reviews, exclusive images, best offers near you, Construction Equipments dealers.

ACE AF 350D Variant	Price Range
Base

Base
- 6
- Diesel
Price Coming Soon ^*
View Price Breakup

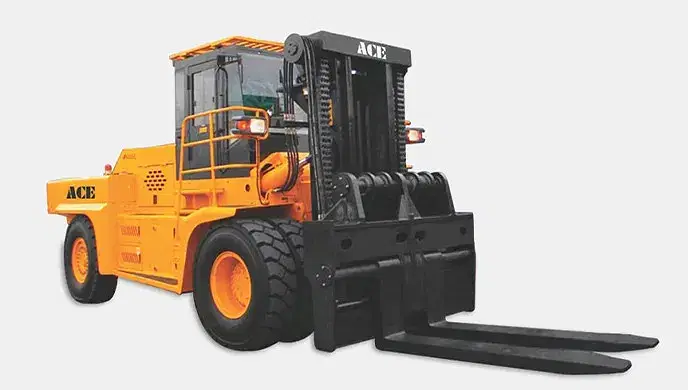

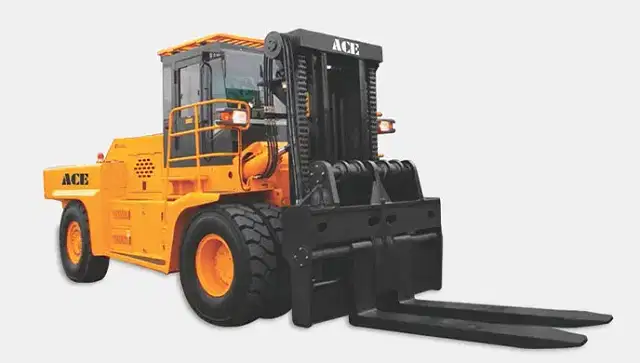

ACE AF 350D Images

ACE AF 350D

ACE AF 350D Specifications

Engine
Brakes
General
Dimensions
Tyres
Performance
Gear Box

Engine

Rated Torque Kgm Rpm1025/1400 Nm/rpm

No Of Cylinders6

Rating260 HP

Make ModelCummins 6CTA8.3-C260

Rated Rpm2200 Rpm

Brakes

Service TypeCaliper disc Brake

Parking TypeInside expanding manual brake

General

CategoryForklift Truck

Lifting Load Capacity35000

Fuel TypeDiesel

Sub CategoryDiesel

Load Center Distance1220

Dimensions

Lift Height3.5

Turning Radius7200

Length To Face Of Forks2440

Fork L W T2440

Overhead Guard Height3760

Overall Width3300

Ground Clearance Mast400

Height5820

Tilt Angle Forward6

Tilt Angle Backward6

Ground Clearance Fork1050

Aisle Width6000

Tyres

Size Front4x16.00-25/32PR

Size Rear2x16.00-25/28PR

Wheel Base4800

Performance

Travel Speed30 KMPH

Lifting M S230 MM/S

Lowering M S500 MM/S

Steering TypePower Steering

Gradability20 %

Gear Box

No Of Speeds Fwd Rev2F/1R
